Band-Pass Waveguide Filters

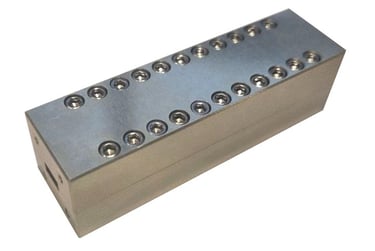

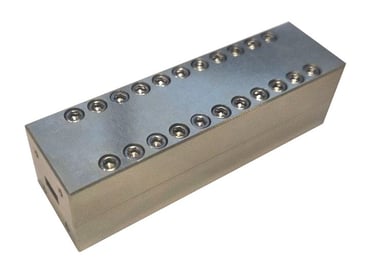

The GW-WBF-XX-YY series consists of waveguide bandpass filters covering the 8 to 40 GHz frequency range. These filters are available in various waveguide types and feature a maximum input VSWR of 1.2:1. Each unit is rated for up to 100 W of CW RF power and provides a maximum insertion loss of 0.5 dB with minimum rejection of 50 dB in the stopband.

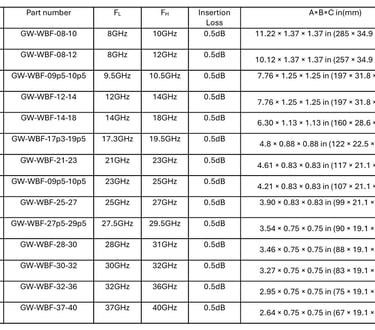

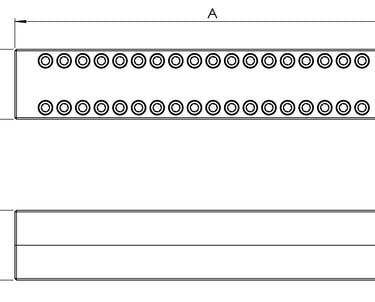

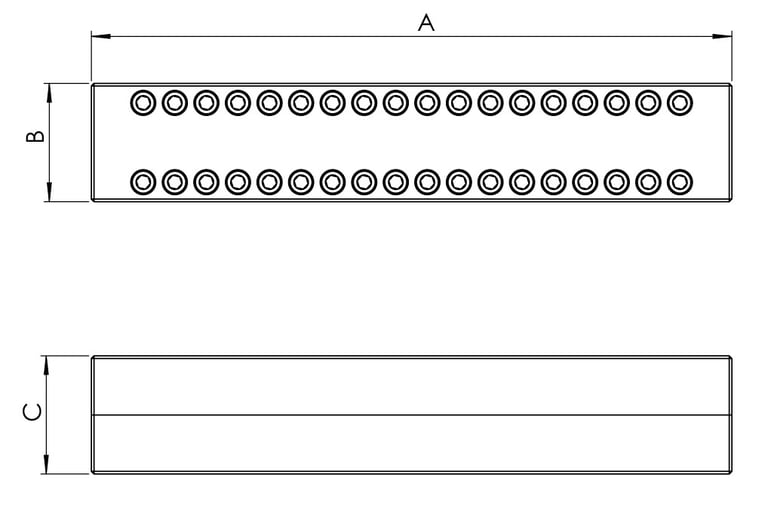

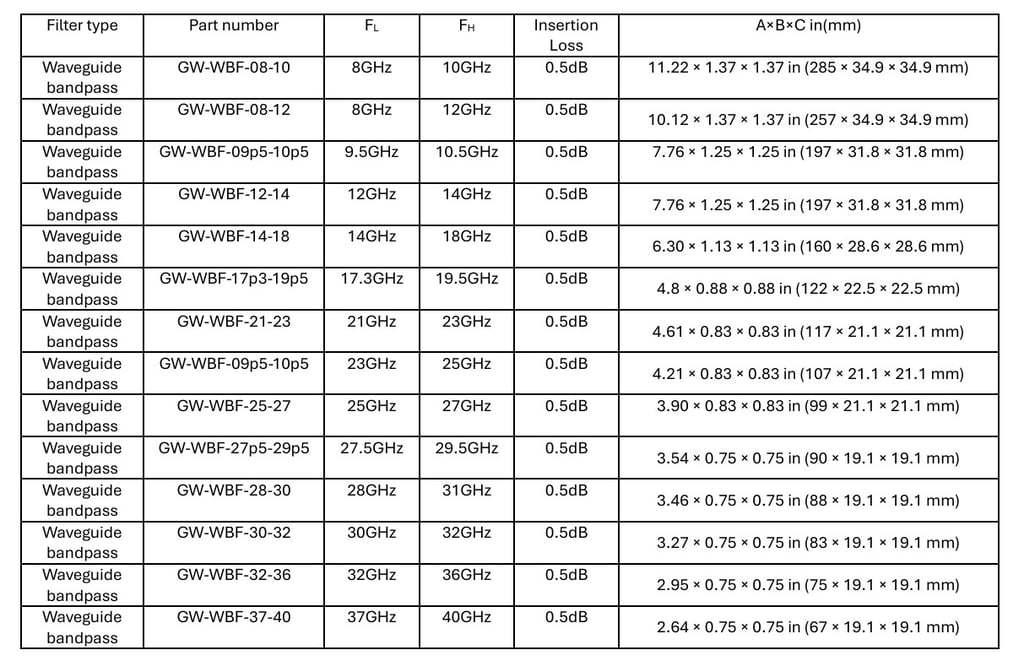

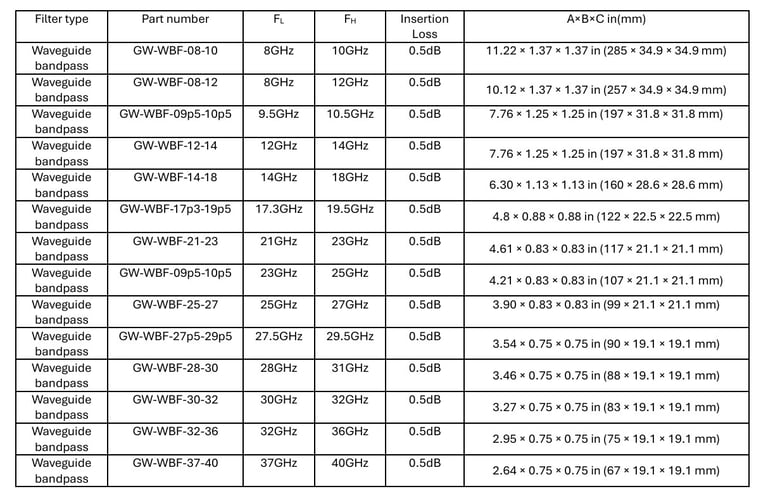

The GW-WBF-XX-YY series is ideal for communication systems, test and measurement setups, instrumentation, and automotive applications. Dimensions and specifications are provided in the table below. For customized frequencies or similar products, our technical support team can assist you in selecting or designing a waveguide bandpass filter that meets your exact requirements.
