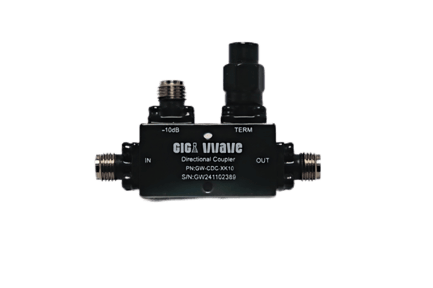

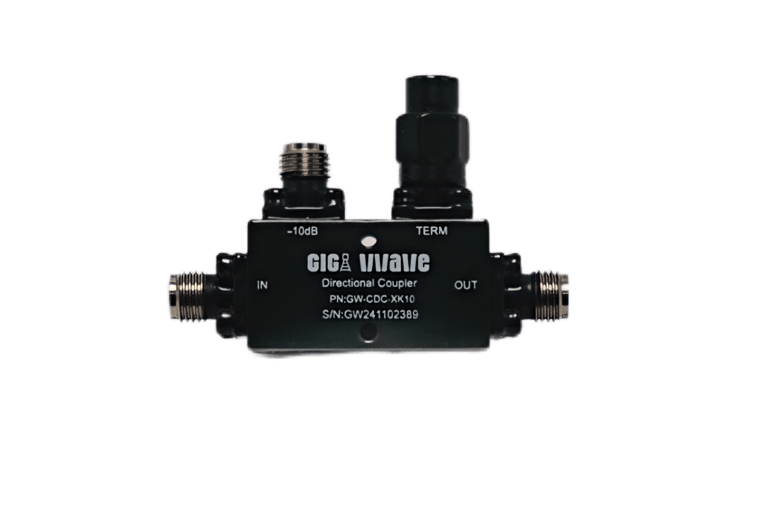

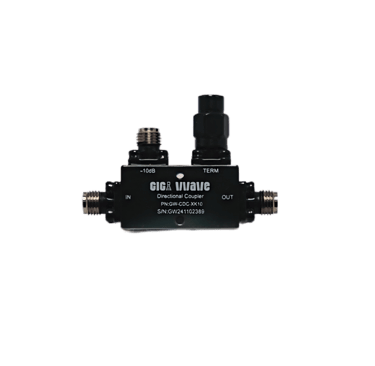

Broadband Directional Coupler

Gigawave directional coupler is designed to be worked from 6 GHz to 40 GHz with various coupling values such as 10dB, 20dB and 30 dB and a coupler directivity of 13dB. The maximum insertion loss of 1.5 dB, VSWR of 1.5 and maximum input power of 30 watts are provided.

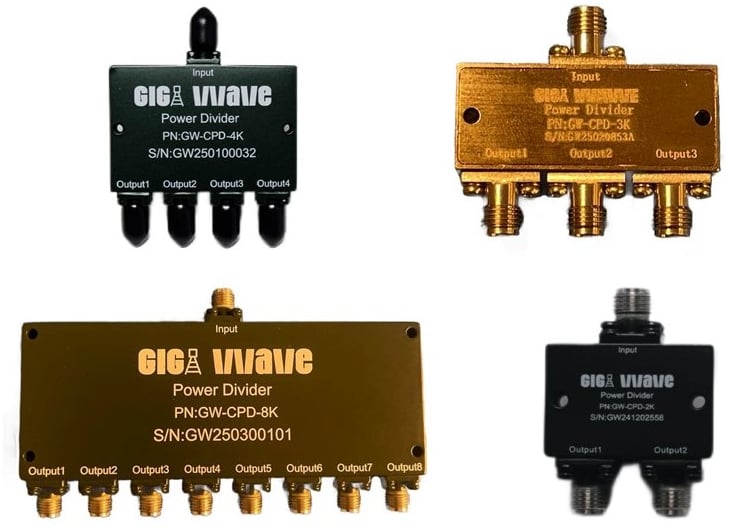

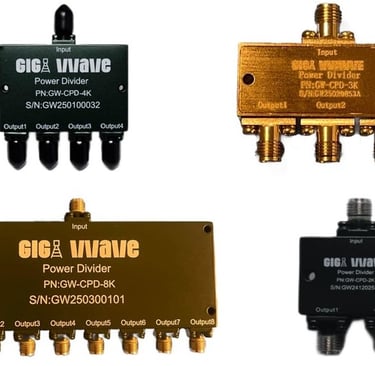

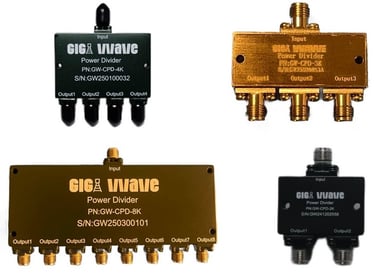

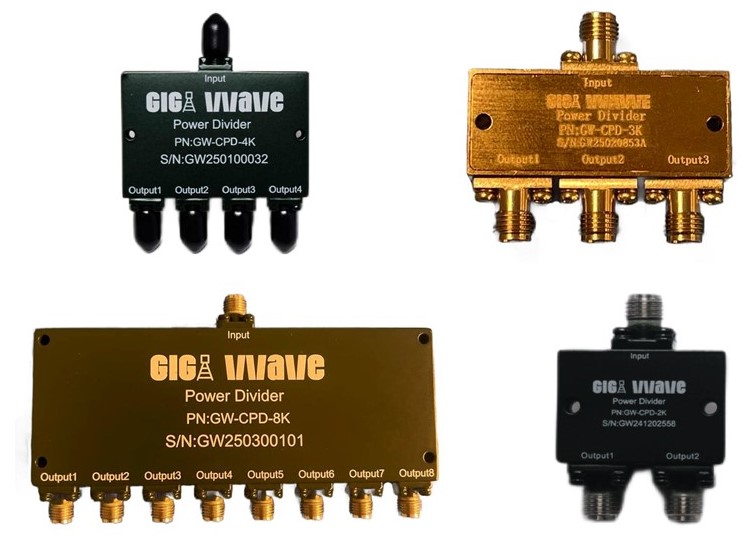

Divider 1-(2,3,4,8)

GW-CPD-series are broadband and low loss 2/3/4/8-way high power Wilkinson power divider that works from 6 GHz to 40 GHz. This female 2.92mm power combiner has 1.5:1 VSWR at each port and maximum insertion loss 0.5 dB. The CPD-series are the best candidate to combine multiple signals or split of a single signal with equal RF power. These power dividers are designed with 22 dB minimum isolation and can handle 20 Watts (CW) input power. GW-CPD-series package have 2.92mm female and are RoHS compliant.

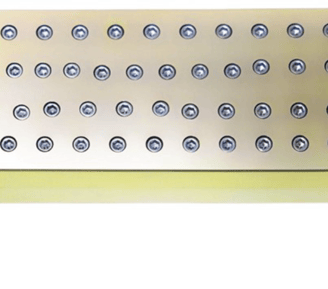

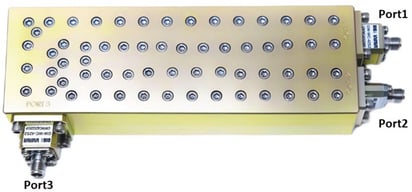

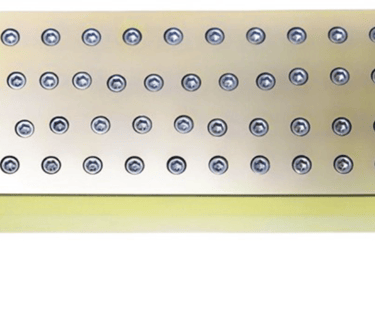

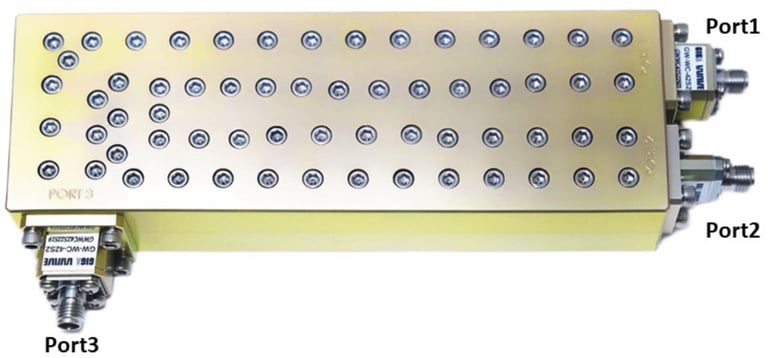

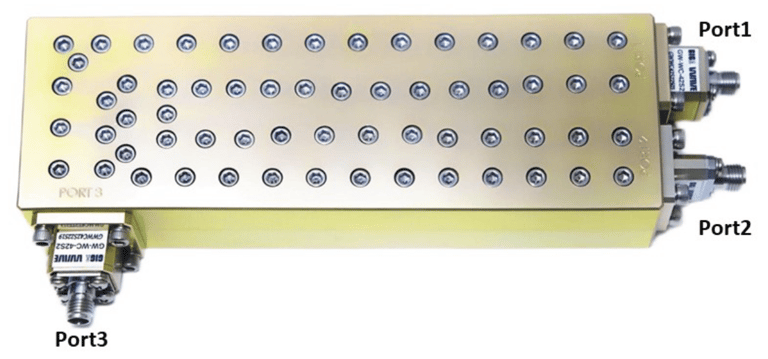

K&Ka band Waveguide Diplexer

K-Ka band waveguide diplexer is a broadband back to back filter that covers in the frequency ranges of 17.5 GHz to 30 GHz commonly used for test and measurement of full-duplex systems. The low pass band is from 17.5 GHz to 20 GHz and high pass band is from 26.5 GHz to 30 GHz. The RF diplexer has great insertion loss of 0.9 dB and minimum return loss of 12 dB. The diplexer is compatible with WR28 and WR42 waveguides. The rejection between the bands is 45 dB.
